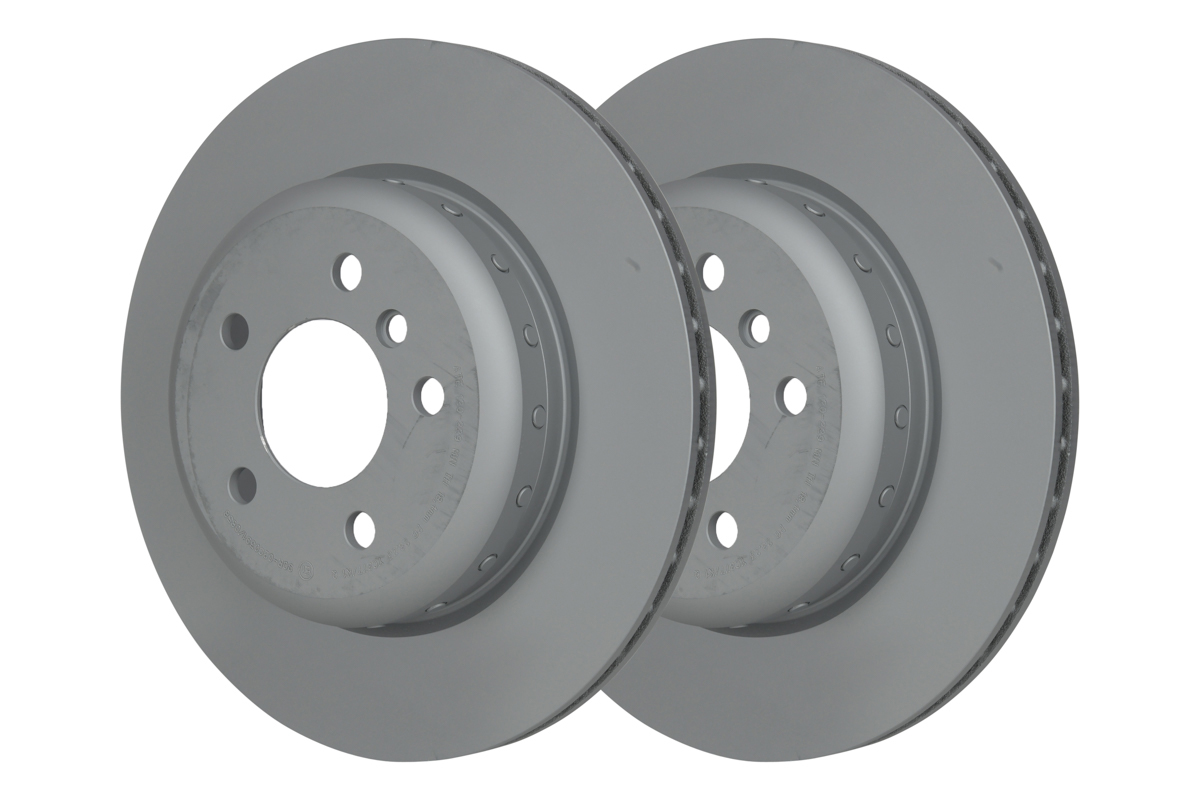

24.0120-0229.2 ATE Тормозной диск

Гальмівні диски

ATE

Not available

Інформація не заповнена.

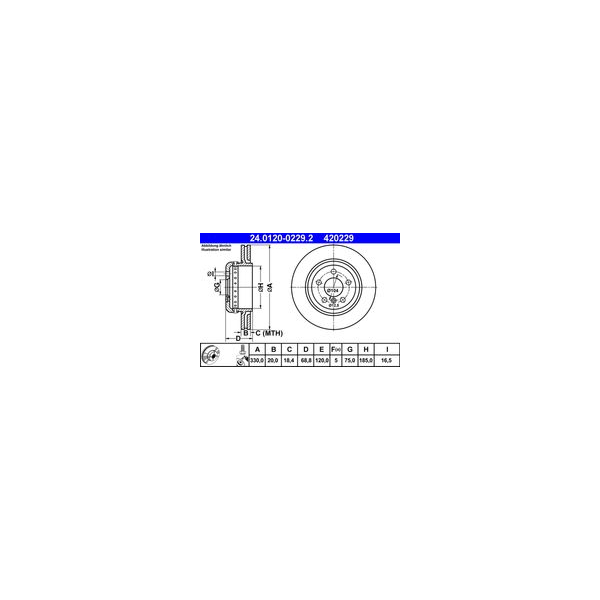

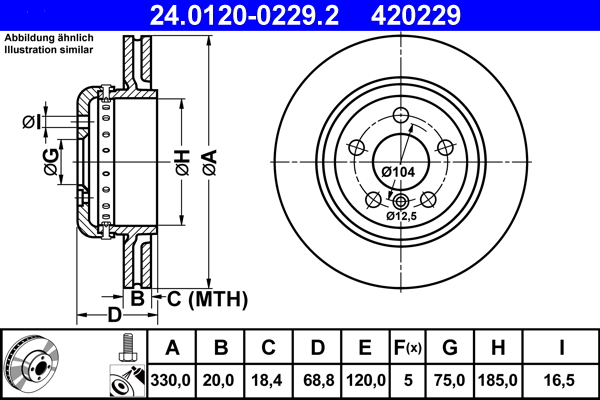

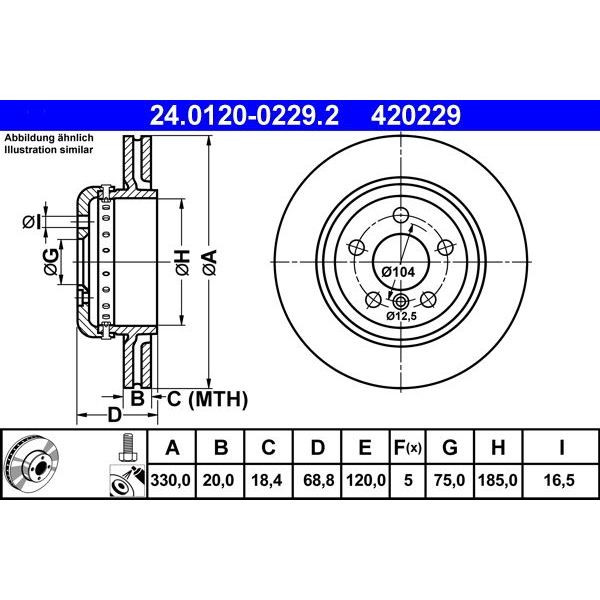

Outer Diameter [mm]	330,0
Brake Disc Thickness [mm]	20,0
Minimum thickness [mm]	18,4
Brake Disc Type	two-piece brake disc
Brake Disc Type	Vented
Machining	High-carbon
Surface	Coated
Number of Holes	5
Supplementary Article/Info 2	with bolts/screws
MAPP code available
Bolt Hole Circle Ø [mm]	120,0
Height [mm]	68,8
Centering Diameter [mm]	75,0
Inner Diameter [mm]	185,0
Bore Diameter [mm]	16,5
Test Mark	E1 90R-02C0391/0858

Автомобілі, для яких підходить запчастина 24012002292 ATE Гальмівні диски

BMW

Модель	Кузов	Випуск
5 (F10)	Saloon	2013-07-01 - 2014-06-01
518 d / 2 L / 143 hp / 105 kW / N47 D20 C / Diesel / Rear-Wheel Drive
518 d / 2 L / 163 hp / 120 kW / B47 D20 A / Diesel / Rear-Wheel Drive
518 d / 2 L / 150 hp / 110 kW / B47 D20 A / Diesel / Rear-Wheel Drive
518 d / 2 L / 136 hp / 100 kW / B47 D20 A, N47 D20 C / Diesel / Rear-Wheel Drive
520 d / 2 L / 136 hp / 100 kW / N47 D20 C / Diesel / Rear-Wheel Drive
520 d / 2 L / 211 hp / 155 kW / B47 D20 A / Diesel / Rear-Wheel Drive
520 d / 2 L / 205 hp / 151 kW / B47 D20 A / Diesel / Rear-Wheel Drive
520 d / 2 L / 190 hp / 140 kW / B47 D20 A / Diesel / Rear-Wheel Drive
520 d / 2 L / 163 hp / 120 kW / B47 D20 A, N47 D20 C / Diesel / Rear-Wheel Drive
520 d / 2 L / 200 hp / 147 kW / N47 D20 C / Diesel / Rear-Wheel Drive
520 d xDrive / 2 L / 200 hp / 147 kW / N47 D20 C / Diesel / All-wheel Drive
520 d xDrive / 2 L / 136 hp / 100 kW / N47 D20 C / Diesel / All-wheel Drive
520 d xDrive / 2 L / 205 hp / 151 kW / B47 D20 A / Diesel / All-wheel Drive
520 d xDrive / 2 L / 211 hp / 155 kW / B47 D20 A / Diesel / All-wheel Drive
520 d xDrive / 2 L / 184 hp / 135 kW / N47 D20 C / Diesel / All-wheel Drive
520 d xDrive / 2 L / 190 hp / 140 kW / B47 D20 A / Diesel / All-wheel Drive
520 d xDrive / 2 L / 163 hp / 120 kW / B47 D20 A, N47 D20 C / Diesel / All-wheel Drive
520 d / 2 L / 184 hp / 135 kW / N47 D20 C / Diesel / Rear-Wheel Drive
520 i / 2 L / 163 hp / 120 kW / N20 B20 A, N20 B20 B / Petrol, Petrol/Alcohol / Rear-Wheel Drive
520 i / 1.6 L / 170 hp / 125 kW / N20 B16 A / Petrol / Rear-Wheel Drive
520 i / 2 L / 184 hp / 135 kW / N20 B20 A, N20 B20 B / Petrol, Petrol/Alcohol / Rear-Wheel Drive
523 i / 2.5 L / 204 hp / 150 kW / N52 B25 A, N52 B25 AF, N52 B25 B, N52 B25 BF / Petrol / Rear-Wheel Drive
523 i / 3 L / 204 hp / 150 kW / N53 B30 A / Petrol / Rear-Wheel Drive
523 i / 3 L / 211 hp / 155 kW / N53 B30 A / Petrol / Rear-Wheel Drive
525 d / 2 L / 211 hp / 155 kW / N47 D20 D / Diesel / Rear-Wheel Drive
525 d / 2 L / 218 hp / 160 kW / N47 D20 D / Diesel / Rear-Wheel Drive
525 d / 3 L / 204 hp / 150 kW / N57 D30 A / Diesel / Rear-Wheel Drive
525 d xDrive / 2 L / 211 hp / 155 kW / N47 D20 D / Diesel / All-wheel Drive
525 d xDrive / 2 L / 218 hp / 160 kW / N47 D20 D / Diesel / All-wheel Drive
528 i xDrive / 2 L / 245 hp / 180 kW / N20 B20 A / Petrol/Alcohol / All-wheel Drive
528 i / 2 L / 245 hp / 180 kW / N20 B20 A / Petrol/Alcohol / Rear-Wheel Drive
528 i / 3 L / 258 hp / 190 kW / N53 B30 A / Petrol / Rear-Wheel Drive
528 i / 3 L / 258 hp / 190 kW / N52 B30 A, N52 B30 AF, N52 B30 BF / Petrol / Rear-Wheel Drive
530 d / 3 L / 245 hp / 180 kW / N57 D30 A / Diesel / Rear-Wheel Drive
530 d xDrive / 3 L / 258 hp / 190 kW / N57 D30 A / Diesel / All-wheel Drive
530 d / 3 L / 258 hp / 190 kW / N57 D30 A / Diesel / Rear-Wheel Drive
530 i / 3 L / 272 hp / 200 kW / N53 B30 A / Petrol / Rear-Wheel Drive
5 Touring (F11)	Estate	2014-07-01 - 2017-02-01
518 d / 2 L / 150 hp / 110 kW / B47 D20 A / Diesel / Rear-Wheel Drive
518 d / 2 L / 163 hp / 120 kW / B47 D20 A / Diesel / Rear-Wheel Drive
518 d / 2 L / 136 hp / 100 kW / B47 D20 A, N47 D20 C / Diesel / Rear-Wheel Drive
518 d / 2 L / 143 hp / 105 kW / N47 D20 C / Diesel / Rear-Wheel Drive
520 d / 2 L / 190 hp / 140 kW / B47 D20 A / Diesel / Rear-Wheel Drive
520 d / 2 L / 205 hp / 151 kW / B47 D20 A / Diesel / Rear-Wheel Drive
520 d / 2 L / 136 hp / 100 kW / N47 D20 C / Diesel / Rear-Wheel Drive
520 d / 2 L / 200 hp / 147 kW / N47 D20 C / Diesel / Rear-Wheel Drive
520 d / 2 L / 211 hp / 155 kW / B47 D20 A / Diesel / Rear-Wheel Drive
520 d / 2 L / 163 hp / 120 kW / B47 D20 A, N47 D20 C / Diesel / Rear-Wheel Drive
520 d xDrive / 2 L / 211 hp / 155 kW / B47 D20 A / Diesel / All-wheel Drive
520 d xDrive / 2 L / 200 hp / 147 kW / N47 D20 C / Diesel / All-wheel Drive
520 d xDrive / 2 L / 184 hp / 135 kW / N47 D20 C / Diesel / All-wheel Drive
520 d xDrive / 2 L / 205 hp / 151 kW / B47 D20 A / Diesel / All-wheel Drive
520 d xDrive / 2 L / 190 hp / 140 kW / B47 D20 A / Diesel / All-wheel Drive
520 d xDrive / 2 L / 163 hp / 120 kW / B47 D20 A, N47 D20 C / Diesel / All-wheel Drive
520 d xDrive / 2 L / 136 hp / 100 kW / N47 D20 C / Diesel / All-wheel Drive
520 d / 2 L / 184 hp / 135 kW / N47 D20 C / Diesel / Rear-Wheel Drive
520 i / 2 L / 163 hp / 120 kW / N20 B20 A, N20 B20 B / Petrol, Petrol/Alcohol / Rear-Wheel Drive
520 i / 2 L / 184 hp / 135 kW / N20 B20 A, N20 B20 B / Petrol, Petrol/Alcohol / Rear-Wheel Drive
523 i / 3 L / 204 hp / 150 kW / N53 B30 A / Petrol / Rear-Wheel Drive
523 i / 2.5 L / 204 hp / 150 kW / N52 B25 A, N52 B25 AF, N52 B25 B / Petrol / Rear-Wheel Drive
525 d / 2 L / 211 hp / 155 kW / N47 D20 D / Diesel / Rear-Wheel Drive
525 d / 3 L / 204 hp / 150 kW / N57 D30 A / Diesel / Rear-Wheel Drive
525 d / 2 L / 218 hp / 160 kW / N47 D20 D / Diesel / Rear-Wheel Drive
525 d xDrive / 2 L / 211 hp / 155 kW / N47 D20 D / Diesel / All-wheel Drive
525 d xDrive / 2 L / 218 hp / 160 kW / N47 D20 D / Diesel / All-wheel Drive
528 i / 2 L / 245 hp / 180 kW / N20 B20 A / Petrol/Alcohol / Rear-Wheel Drive
528 i / 3 L / 258 hp / 190 kW / N53 B30 A / Petrol / Rear-Wheel Drive
528 i xDrive / 2 L / 245 hp / 180 kW / N20 B20 A / Petrol/Alcohol / All-wheel Drive
530 d / 3 L / 245 hp / 180 kW / N57 D30 A / Diesel / Rear-Wheel Drive
530 d / 3 L / 258 hp / 190 kW / N57 D30 A / Diesel / Rear-Wheel Drive
530 d / 3 L / 286 hp / 210 kW / N57 D30 A / Diesel / Rear-Wheel Drive
530 i / 3 L / 272 hp / 200 kW / N53 B30 A / Petrol / Rear-Wheel Drive
530 i / 3 L / 258 hp / 190 kW / N52 B30 A, N52 B30 AF / Petrol / Rear-Wheel Drive

Назва бренду: ATE

Country of brand registration: Germany

Address: 65824, Schwalbach, Sodener Straße 9

Website: [email protected]

Phone: +49 6196 87-0

Manufacturer of auto parts
frontend.information_is_not_filled
34 21 6 775 287 / 34 21 6 898 733
